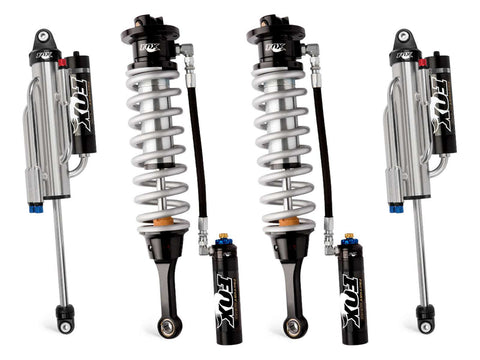

2010-14 Ford Raptor SVT FOX Factory Series Shock Package

The ultimate bolt on suspension package for the 2010-2014 Ford Raptor SVT!

At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Race Series bypass position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

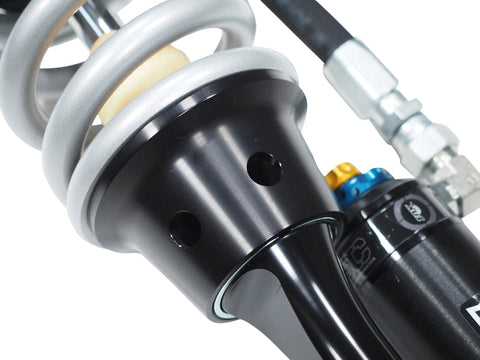

These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. On the front coilovers, the integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race Series 3.0 Coil-over Internal Bypass shocks utilize all of the same components from our race winning Trophy Truck shocks with Eibach springs, stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals.

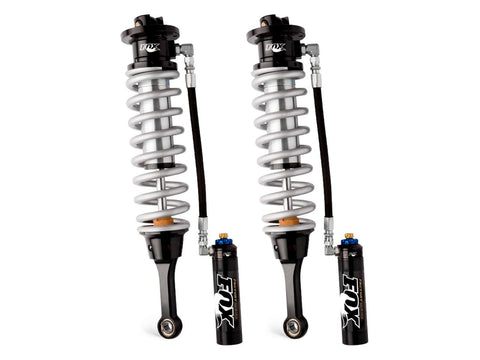

Front Coilover DSC Option: Add remarkable versatility and precise tuning with new DSC. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.

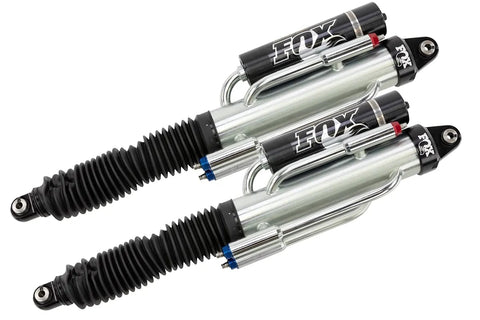

Rear Bypass QAB Option: Quickly and easily manually adjust bypass tubes without tools. The adjuster has the same flow and range as standard bypass units. The QAB has a definitive click at every quarter turn. O-ring seal keeps moisture and contaminants out.

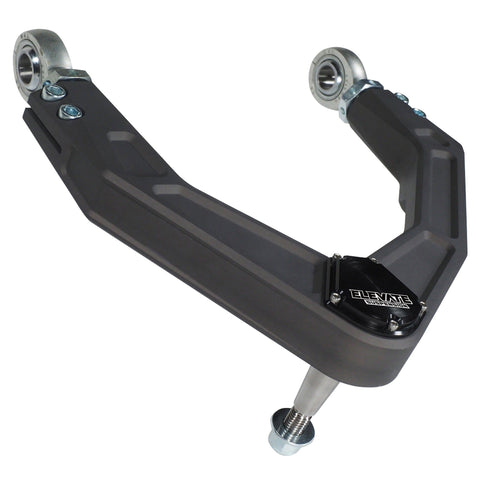

Control Arm Option: Pair with ELEVATE Billet Upper Control Arms in EXCLUSIVE FOX Orange to maximize travel and improve the alignment.
